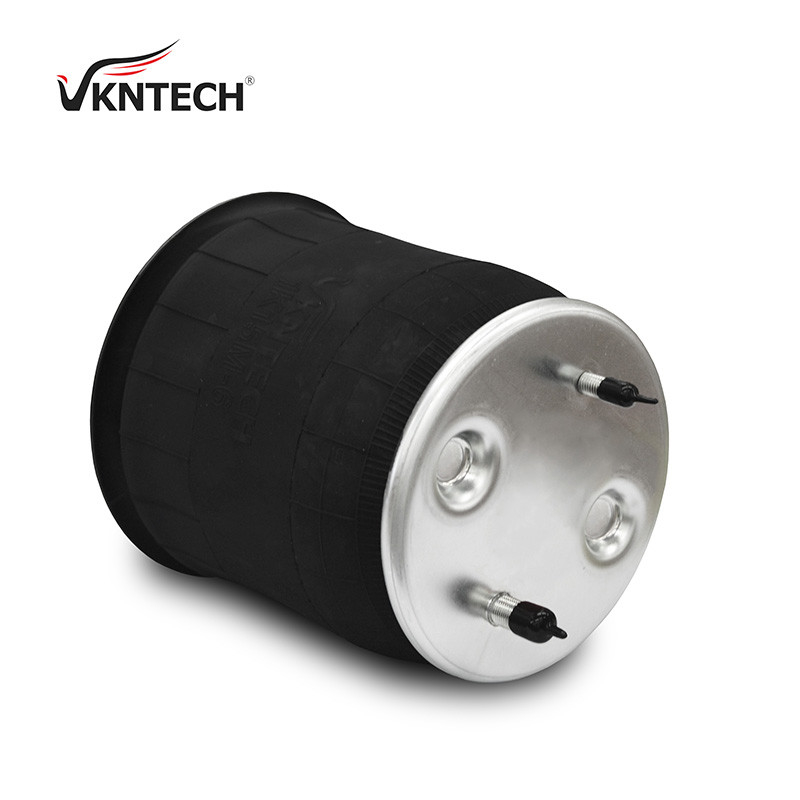

Firestone W01-358-9213 Truck Air Spring 889213 Replacement Navistar 1660581C1

Firestone W01-358-9213 Air Springs 889213 Air Bag, Replaces Navistar 1660581C1

Special Notes

The 280-9213 can be used to replace Firestone W01-358-9219 and W01-358-9296 air bags by loosening the base, rotating the base to line up the studs top and bottom, and retightening the base. You will also need to reuse the top bracket off of the W01-358-9296. The W01-358-9219 does not use a top bracket.

Product Description

Manufacturer: Spring Pro

Spring Pro Bellows Number: 889213

Goodyear Bellows Number: 566-24-3-038

Goodyear Part Number: 1R12-090

Firestone Bellows Number: 1T15M-6

Firestone Part Number: W01-358-9213

Replaces: Navistar 501259C-1, Navistar 501559C-2 and Navistar 1660581C-1, /GM Heavy Duty Truck 350003-3201 (rotate piston), /GM Heavy Duty Truck 352223-3203 (rotate piston), /GM Heavy Duty Truck 350003-3204 (rotate piston), /GM Heavy Duty Truck 350003-3209 (rotate piston), /GM 8061151 (rotate piston & reuse top bracket), /GM 8169868 (rotate piston & reuse top bracket)

Cross References: 350003-3201, 352223-3203, 350003-3204, 350003-3209, 8061151, 8169868, 1R12182, E1R12090, E1R12182, 1R12090, 1R12204, 501559C2, 566243067, 9219, 9296, 8407, 8441, 167240C1, 1R12182, 1R12400, 1R12-090, 352-9213, 1660581C1, 501559C1, 501559C2, SC2048, 8407, 64308, 9 10-16 P 441, 910-16P441, 91016P441, W01-358-9213, W013589213, W01-358-9219, W013589219, W01-358-9296, W013589296
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.

Product Drawing
